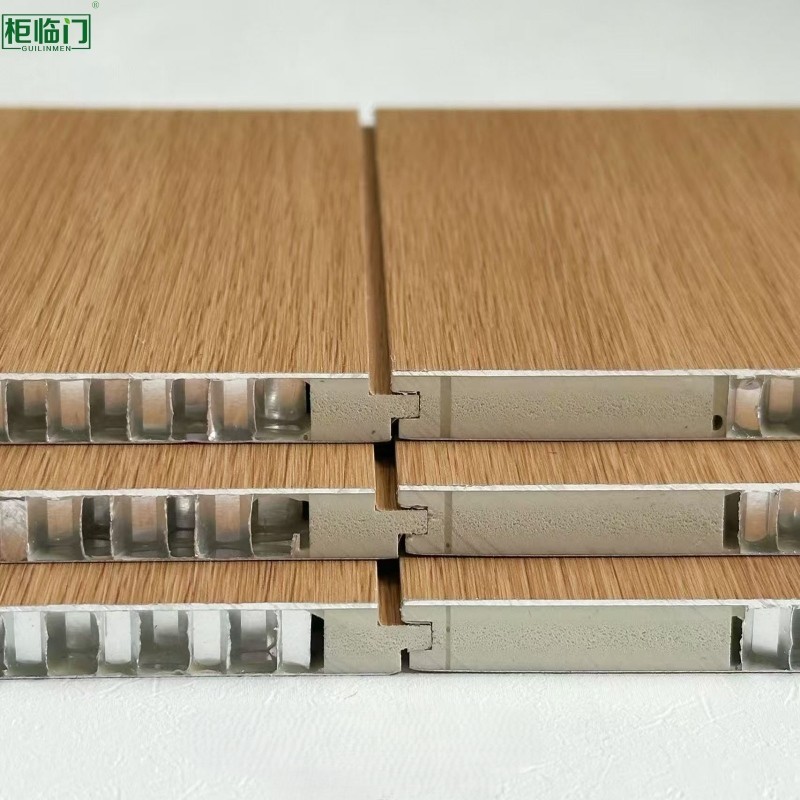

Engineered All-aluminum Wall Cladding For Long-lasting Interiors
GUILIMEN all-aluminum wall protection paneling is a composite bonded with two-component eco-friendly polyurethane glue, composed of double-sided aluminum sheets and an aluminum honeycomb core. Developed from aerospace technologies for civil use, its aluminum honeycomb structure delivers excellent stability.
Featuring light weight, high strength, fire resistance, environmental friendliness, waterproof, anti-corrosion, insect-proof, sound insulation and thermal insulation performance, the panels are widely applied in interior and public space wall decoration. Two micro-gap joint options (aluminum profile and diatom ooze) are offered for superior visual effects.
Main Advantages
✅ Zero formaldehyde, eco-friendly & safe for families
✅ Fully waterproof, mold-proof, perfect for bathroom/balcony walls
✅ Anti-corrosion & termite-proof, ideal for coastal areas
✅ Excellent sound insulation, quiet interior space
✅ Ultra-flat large panels, fewer splicing seams
✅ Custom wood grain, stone & metallic finishes for all styles
Common Applications
1. Architectural Exteriors: High-rise facades, curtain walls, rainscreen systems, airport terminals, metro stations
2. Interiors: Lobbies, partitions, ceilings, elevator cabs, cleanrooms
3. Transportation: Marine interiors, metro coach panels, vehicle bodywork
4. Specialty: Exhibition stands, signage, furniture, solid surfacing backing for stone/marble
Aluminum Honeycomb Core
Aluminum honeycomb core is made of multiple layers of aluminum foils, processed by gluing, pressing and expanding. It has sharp and clear hole surface, which is suitable for splicing high-quality core-to-core panels and other purposes.
| Characters of Honeycomb Aluminum |
|
| Parameter |
Specification |
| Aluminum Alloy |
AA3003 H18, AA5052 H18 |
| Total Panel Thickness |
4mm,8mm,10mm,15mm,25mm,Max 500mm |
| Aluminum Skin Thickness |
0.5mm,0.8mm,1mm,1.5mm,Max 3mm |
| Coating |
Fluorocarbon coating, Flim, Spray coating, Melamine paper PP. Flame-retardant sheet, PVDF, PE, Anodized, MillFinished, Embossed, Granite etc |
| Length |
2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
| Width |
1000mm, 1220mm, 125Omm, 1500mm, Max 2200mm |
| Honeycomb Core Foil Thickness |
0. 02mm, 0. 04mm, 0. 05mm, 0. 06mm, 0. 08mm Max 0. 1mm |
| Honeycomb Core Cell Size |
licro-ApertureHoneycomb:1/10" (2. 6mm), 1/8" (3.17mm),1/6" (3. 47mm), 1/5" (5.2mm), Regular Honeycomb:1/4" (6. 35mm),1/3° (8. 47mm),3/8" (9.53mm),1/2" (12.7mm),3/4" (19.05mm),4/5" (20.32mm),1*(25.9m) |
| Honeycomb Core Cell Length |
Micro-Aperture Honeycomb:1. 5mm, 1. 83mm, 2mm, 2.5mm, 3mm,
RegularHoneycomb: 4mm, 5mm, 6mm, 7. 5mm, 1Omm, 12mm, 15mm |
| Edge |
Close Edge, Open Edge |
Overview of Our Factory
FAQ
Q1: What specifications are available for Aluminum Honeycomb Panels?
A: We offer a wide range of customizable specifications, including panel thickness, aluminum skin thickness, honeycomb core, panel size, alloy grade and surface finish. Standard and customized specifications are available according to your project or wholesale requirements.
Q2: Are Aluminum Honeycomb Panels suitable for outdoor applications?
A: Yes. Our aluminum honeycomb panels can be designed for both indoor and outdoor applications. With suitable aluminum materials and surface treatments, they offer excellent lightweight strength, corrosion resistance and weather resistance for facades, walls, ceilings and other architectural applications.
Q3: What surface finishes and colors can you provide?
A: We provide various surface finishes, including solid colors, metallic, wood grain, marble, stone, brushed and other customized finishes. Custom colors and finishes can also be developed according to your brand or project requirements.
Q4: What is your payment term?
A: We accept the payment terms: T/T, L/C, FOB, CIF.
Q5: What are the transportation methods?
A: Ocean Shipping and railway transportation. Feel free to select the packaging and shipping options that best meet your specific requirements, ensuring a secure and efficient delivery of our aluminum plates.
Q6: Can I get a sample?
A: Yes, we can provide a free standard-size sample and the color board, but the delivery cost should be paid by you. For customized or large-size samples, you should bear both the sample cost and delivery cost
Looking for a reliable Aluminum Honeycomb Panel supplier?
Contact Guilinmen for OEM / ODM solutions, wholesale pricing and customized samples.
